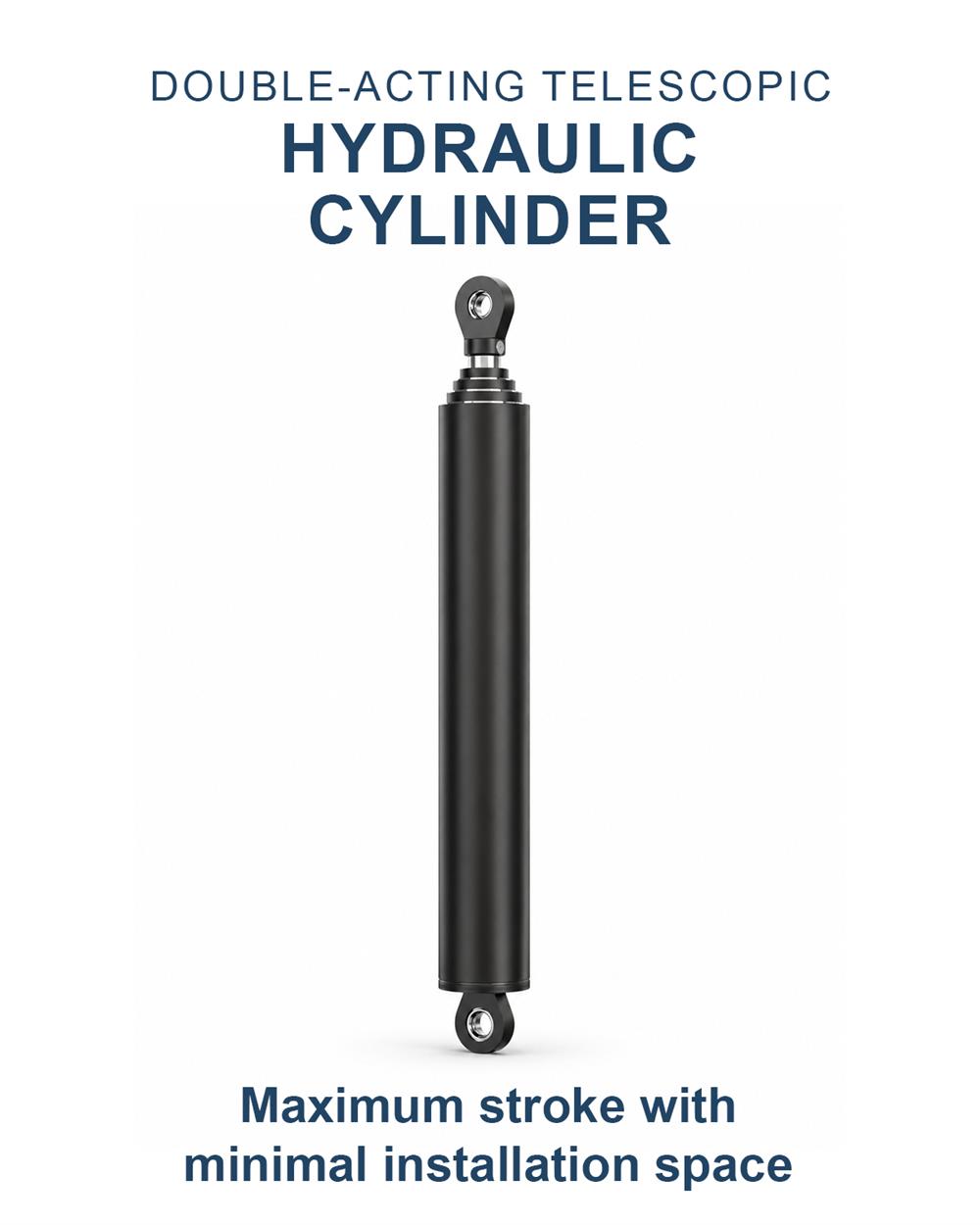

Double acting telescopic hydraulic cylinder is a multi-stage cylinder that uses hydraulic pressure for both extension and retraction, enabling controlled motion in both directions. It delivers a long stroke with a compact retracted size. The stages extend and retract in a precise sequence for smooth and stable operation under load. It provides better control of speed and force in both extension and return stroke. Designed for heavy-duty applications requiring powered bidirectional movement and high efficiency.
Typical Bore Range - 32 mm to 300 mm
Typical Stroke Length - Up to 10000 mm
Testing Pressure - Up to 240 Bar
Applications - Dump trucks, Tippers, Lifting platforms
Industry - Transportation, Construction, Waste management
Benefits - Long stroke capability, Space-saving design, Efficient vertical lifting
Frequently Asked Questions (FAQs)
Q: Can telescopic hydraulic cylinders be customized for specific applications?
Yes, multi-stage configurations, stroke length, and mounting options can be customized as per requirements.
Q: Can telescopic cylinders be used in horizontal applications?
Limited, they are generally designed for vertical or near-vertical use
